Remote-controlled pool vacuum, 15 m cable as standard

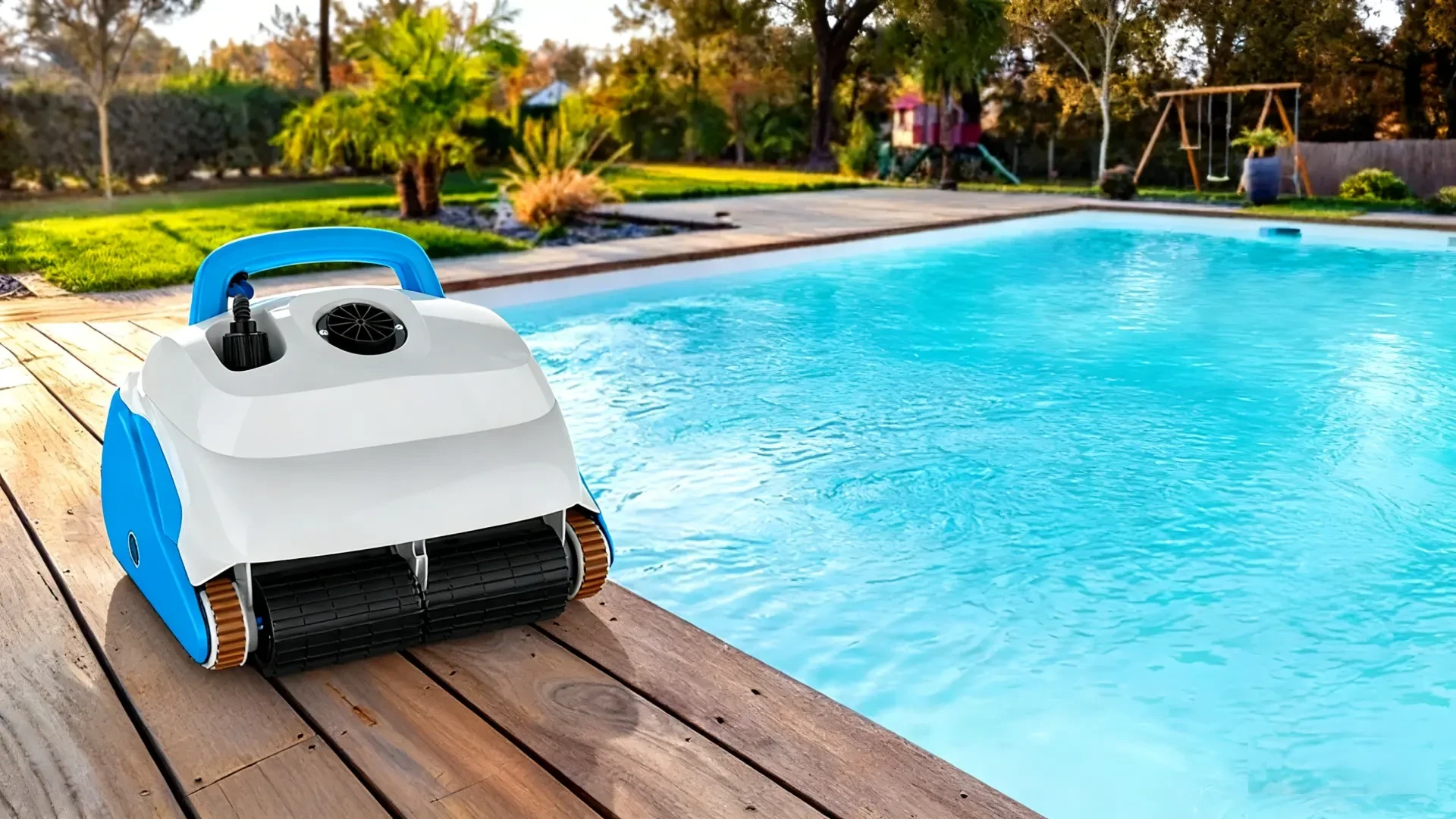

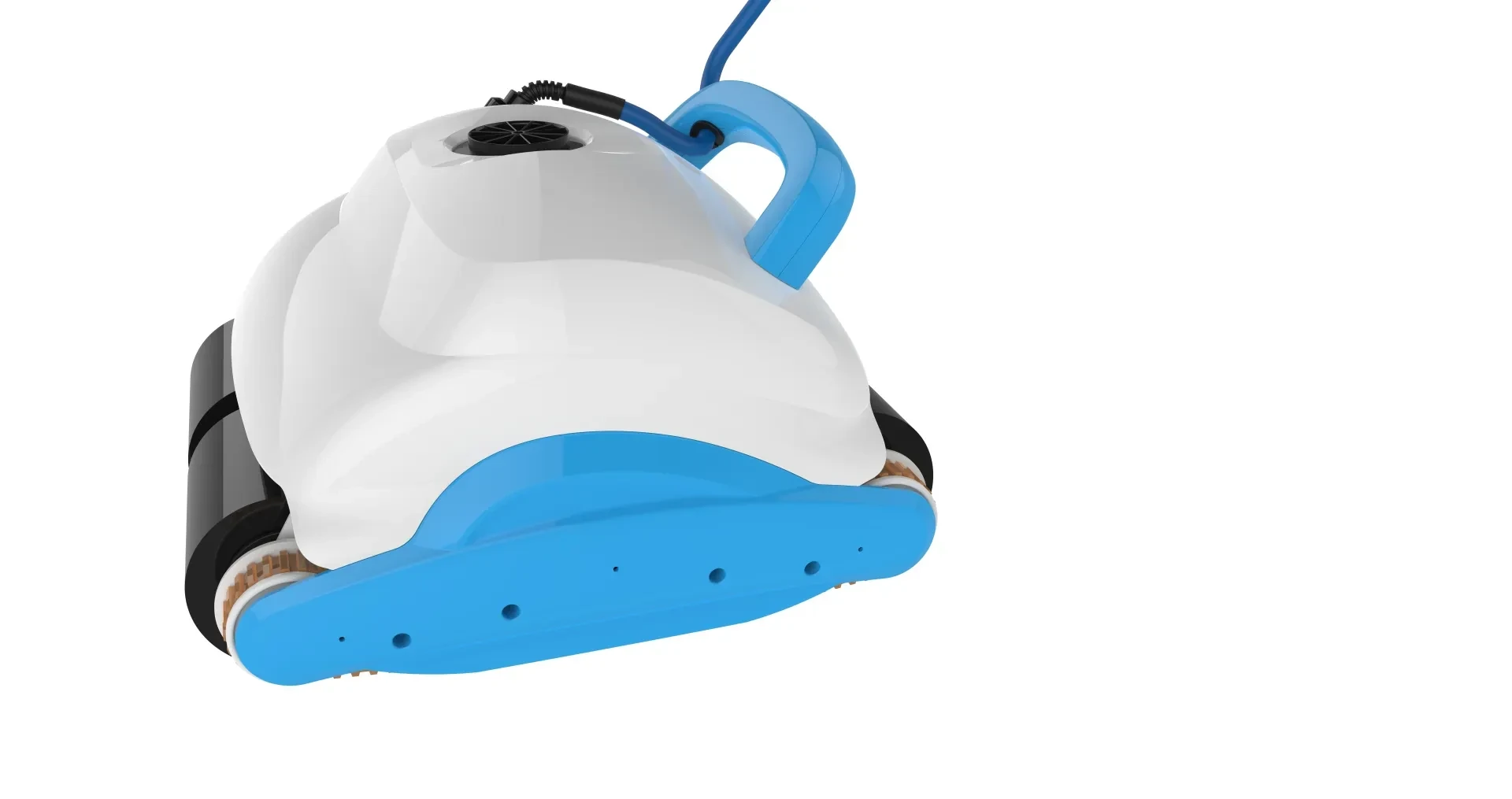

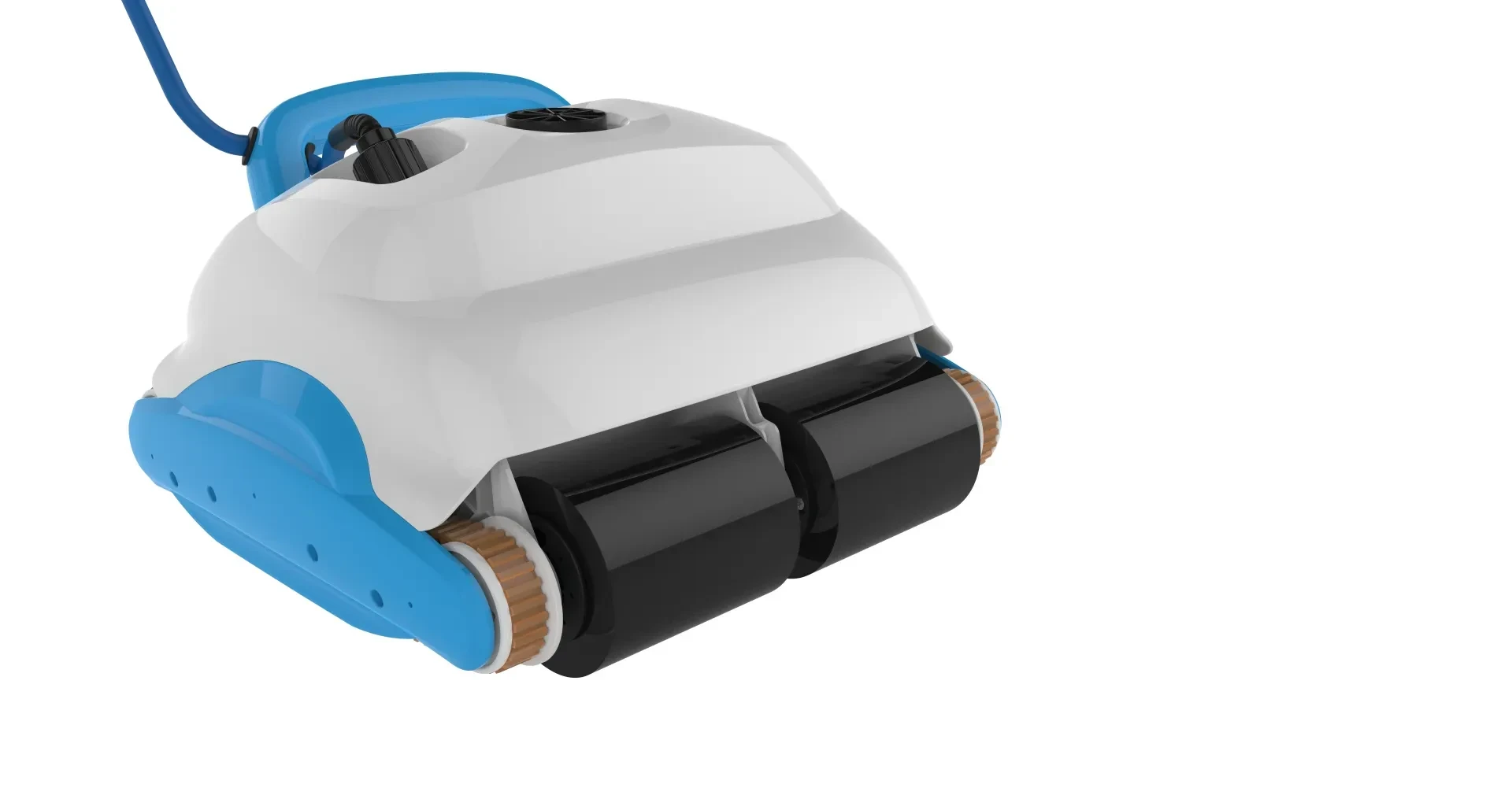

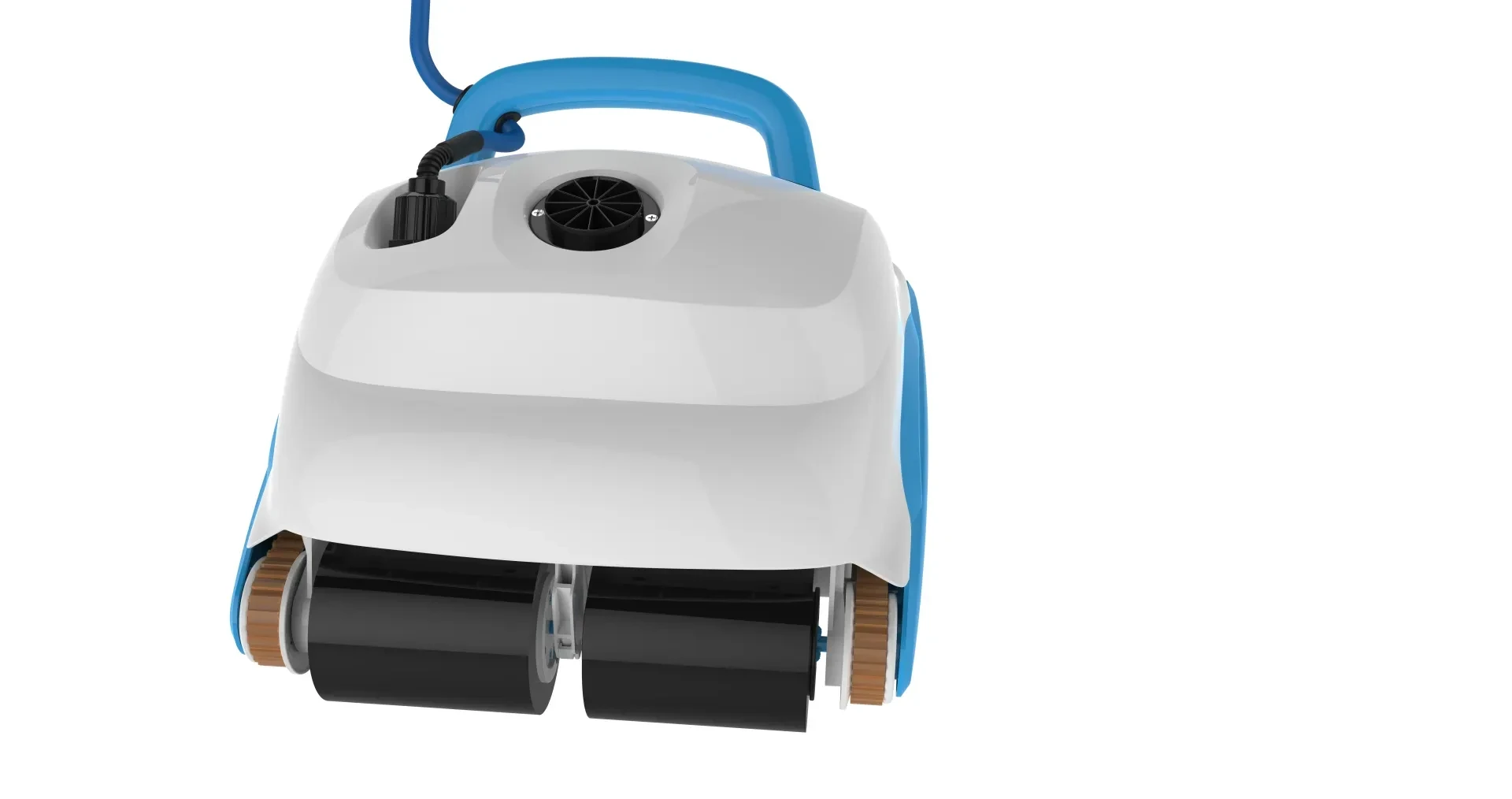

A white robotic pool cleaner with blue handle and chassis, built in three parts: the cleaning unit, the power console and the control panel. The unit is computer-controlled, scrubs the floor and walls while the water is filtered continuously, and removes the need to drain and refill the pool after cleaning. The cable is 15 m as standard and can be built up to 30 m, which covers pools of roughly 1,000 m².
- Three-part system: cleaning unit, power console, control panel
- Floor, wall and waterline cleaned while the water is filtered
- Automatic, timed or manual cleaning from the remote
- 15 m cable as standard, up to 30 m for pools around 1,000 m²
- 29.8 V DC supply; host IPX8, power box IP23
- Caddy cart for moving and storage
What the machine actually does
Cleaning functions
The machine has three parts: the cleaning unit, the power console and the control panel. The unit is computer-controlled and brushes the floor and walls while the water is filtered continuously; in place of a full water change, the debris ends up in the filter bag.
- Automatic cleaning: switched on, the machine runs in automatic mode; using the remote moves it to manual control.
- Overall cleaning: floor, walls and water are handled in one pass, with dirt collected in the filter bag (70 μm by default, other ratings on request).
- Timed cleaning: set the cycle on the remote and the machine shuts down when the cycle ends.
- Manual cleaning: use the remote to clean a specific area straight away.
- Out-of-water protection: when the unit leaves the water, the impeller slows to a stop within one second.
- Stall protection: if debris slows the impeller, the machine stops.
Body and drive
- Three motors provide the climbing ability and the water spray capacity.
- The unit self-aligns vertically when climbing walls, and the floating cable is programmed to resist tangling.
- Wall and stair climbing with waterline scrubbing; a floor-only quick clean option is available for light debris.
- Suitable for all pool shapes and surfaces, with a multifunction digital control box and easy maintenance.
Cable and pool size
- Standard cable is 15 m, which suits pools of roughly 30–200 m².
- A 30 m cable can be built to order; it covers pools of about 1,000 m².
- Tell us the pool length and shape when ordering so the cable and cycle time are matched to the site.
Technical data
| Parameter | Robot Pool Cleaner |
|---|---|
| Model number | ROBO-PLUS |
| Material | Plastic |
| Origin | Mainland China |
| Debris handling | With filter bag |
| High-concerned chemical | None |
| Robot size (L×W×H) | 456 × 462 × 280 mm |
| Input voltage | 100–240 V |
| Output voltage | 29.8 V |
| Rated power | 200 W |
| Cycle time | 0.5 h / 1 h / 2 h |
| Cleaning range | 30–200 m² on the 15 m cable; about 1,000 m² on the 30 m cable |
| Floating cable | 15 m standard; 20 m and 25 m options, up to 30 m on request |
| Filter bag | Reusable bag with two filter grades; 70 μm fine grade available |
| Water flow | 18 m³/h |
| Moving speed | 15 m/min |
| Max climbing height | 180 cm |
| Waterproof rating | Host IPX8; power box IP23; remote control IP23 |
| Working temperature | 10 °C to 40 °C |
| Storage temperature | 0 °C to 40 °C |
| Packaging / net weight (robot) | 574 × 574 × 413 mm / 14 kg |
| Packaging / net weight (caddy) | 690 × 400 × 220 mm / 6 kg |
Technical data is indicative and may change with product revisions. Confirm the current datasheet before quoting a customer.
